Architectural Turnbuckle, Toggle-Stud

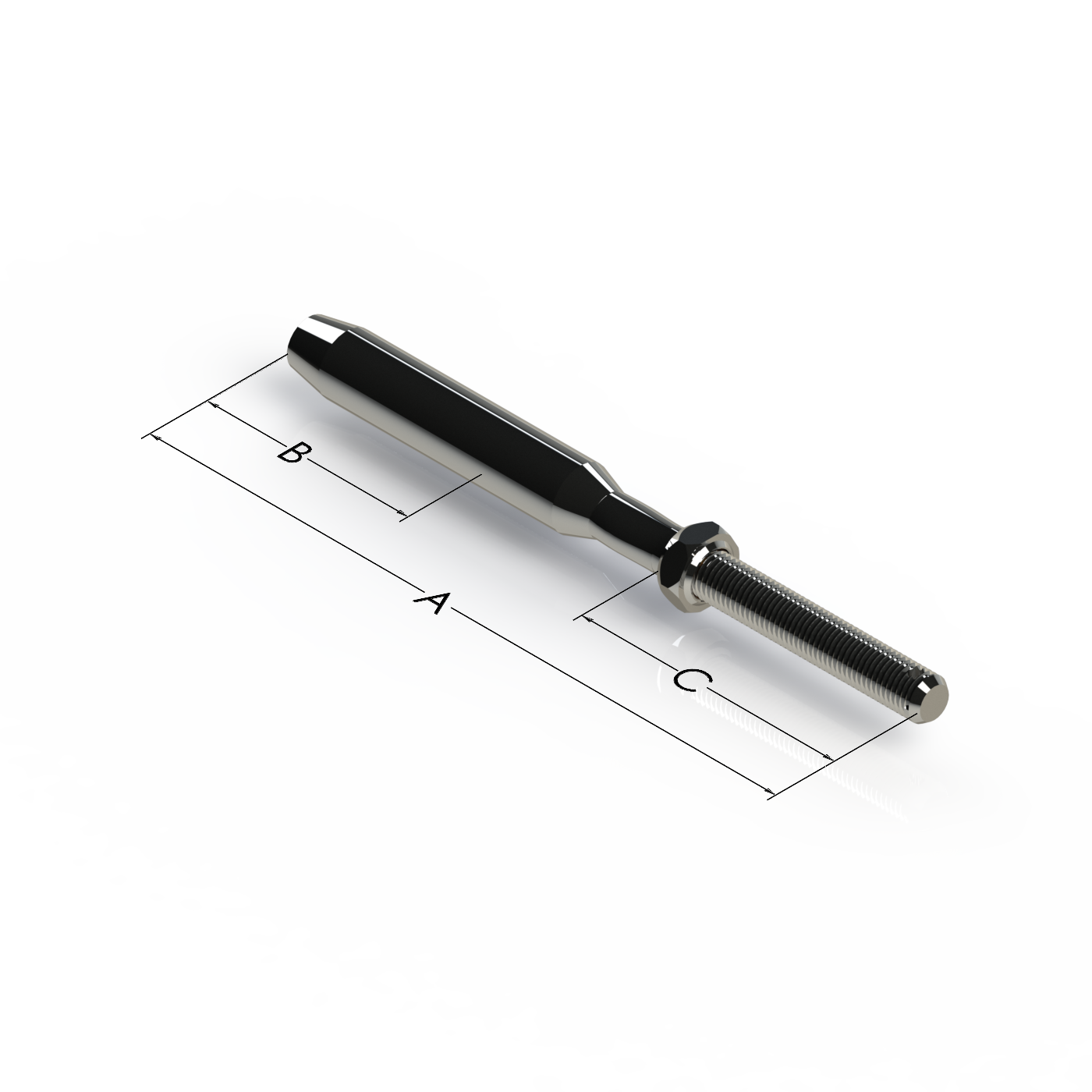

AF11_XX_Architectural T-bolt Toggle_02.png
Architectural Turnbuckle, Toggle-Stud

$0.00
Quantity:
Contact for Details
Available Variations:
Units: Metric-M or Imperial-I
AR PRODUCT DATABASE (+HTML) - AF11 - Architectural Turnbuckle, Toggle-Stud


                    PART NO.
                    Name
                    Wire Size
                    Body Thread
                    L Open
                    L Closed
                    A
                    B
                    C
                    ØPin


                    mm
                    Inch
                    UNF
                    mm
                    Inch
                    mm
                    Inch
                    mm
                    Inch
                    mm
                    Inch
                    mm
                    Inch
                    mm
                    Inch



                    ACB04-1/4
                    Architectural Turnbuckle, Toggle-Stud, 1/8" Wire
                    3.0
                    1/8
                    1/4
                    155.0
                    6 3/32
                    113.0
                    4 7/16
                    76.0
                    2.000
                    32.0
                    1 1/4
                    36.0
                    1 13/32
                    6.3
                    1/4


                    ACB05-1/4
                    Architectural Turnbuckle, Toggle-Stud, 5/32" Wire
                    4.0
                    5/32
                    1/4
                    155.0
                    6 3/32
                    113.0
                    4 7/16
                    76.0
                    2.000
                    32.0
                    1 1/4
                    36.0
                    1 13/32
                    6.3
                    1/4


                    ACB06-1/4
                    Architectural Turnbuckle, Toggle-Stud, 5/32" Wire
                    5.0
                    3/16
                    1/4
                    155.0
                    6 3/32
                    113.0
                    4 7/16
                    76.0
                    2.000
                    32.0
                    1 1/4
                    36.0
                    1 13/32
                    6.3
                    1/4
